描述
低功耗、性能强大
支持RS232接口和USB接口
全面读取所有主流一维、二维码
快速读取手机屏幕条码
Low Power Consumption, Strong Performance. Read all Mainstream 1D/2D Barcodes.
Fast Mobile Phone Screen Barcode Reading.
Build in RS232 and USB Interface.

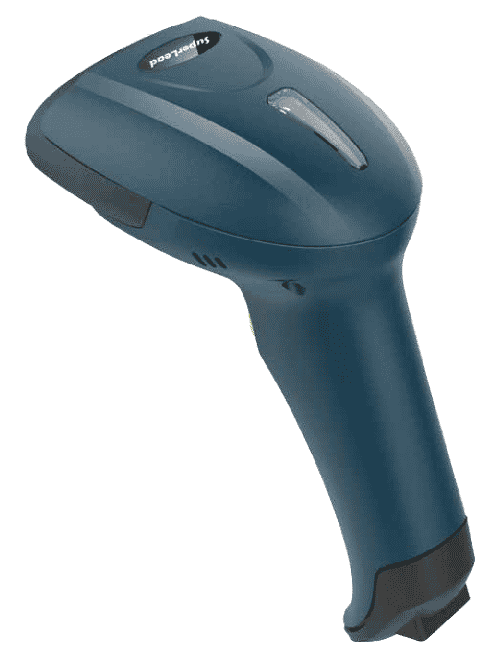

BT-S330T
技术规格书
Technical Specification
|
物理参数 |
||
|
尺寸Dimensions: |
170mm x 70mm x 95mm |
|
|
重量Weight: |
126g |
|
|
电压Voltage\ 电流Current: |
5 VDC +/-10% @ 400 mA |
|
|
性能参数 |
||
|
传感器像素Image (Pixels): |
640 pixels (H)x 480 pixels (V) |
|
|
光源Light Source: |
Aiming: 617 nm LED; illuminaon: 625nm – LED |
|
|
视场角Field of View: |
42° (H) x 31.5° (V) |
|
|
旋转倾斜偏转Roll / Pitch / Yaw: |
360°, ±65°, ±60° |
|
|
打印对比度Print Contrast: |
25% minimum re?ec?ve di?erence |
|
|
解码兼容性 |
||
|
一维条码1-D: |
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
|
|
二维条码2-D: |
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
|
|
运动容差Moton Tolerances |
up to 5M per second |
|
|
接口支持Interfaces Supported: |
USB, RS232 |
|
|
User Environment |
||
|
工作温度Operaing Temperature: |
32° to 122° F / 0° to 50° C |
|
|
存储温度Storage Temperature: |
-40° to 158° F / -40° to 70° C |
|
|
湿度Humidity: |
5% to 95%, non-condensing |
|
|
抗震动Drop/Shock Speci?cations: |
Withstands mul?ple 1.8m(6?.) drops to concrete |
|
|
环境光免疫Ambient Light Immunity: |
Immune to normal indoor ligh?ng up to 1600 Lux. Immune to sunlight up to 86,000 Lux. |
|
|
Decode Ranges |
||
|
Code 39 (5 mil) |
30mm-100mm |
|
|
100%UPCA (13 mil) |
40mm-270mm |
|
|
1D Minimal Resolution |
4mil |
|
|
Performance may be impacted by bar code quality and environmental condi?ons |
||
|
|
||
